| Management number | 221437528 | Release Date | 2026/05/03 | List Price | $40.00 | Model Number | 221437528 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

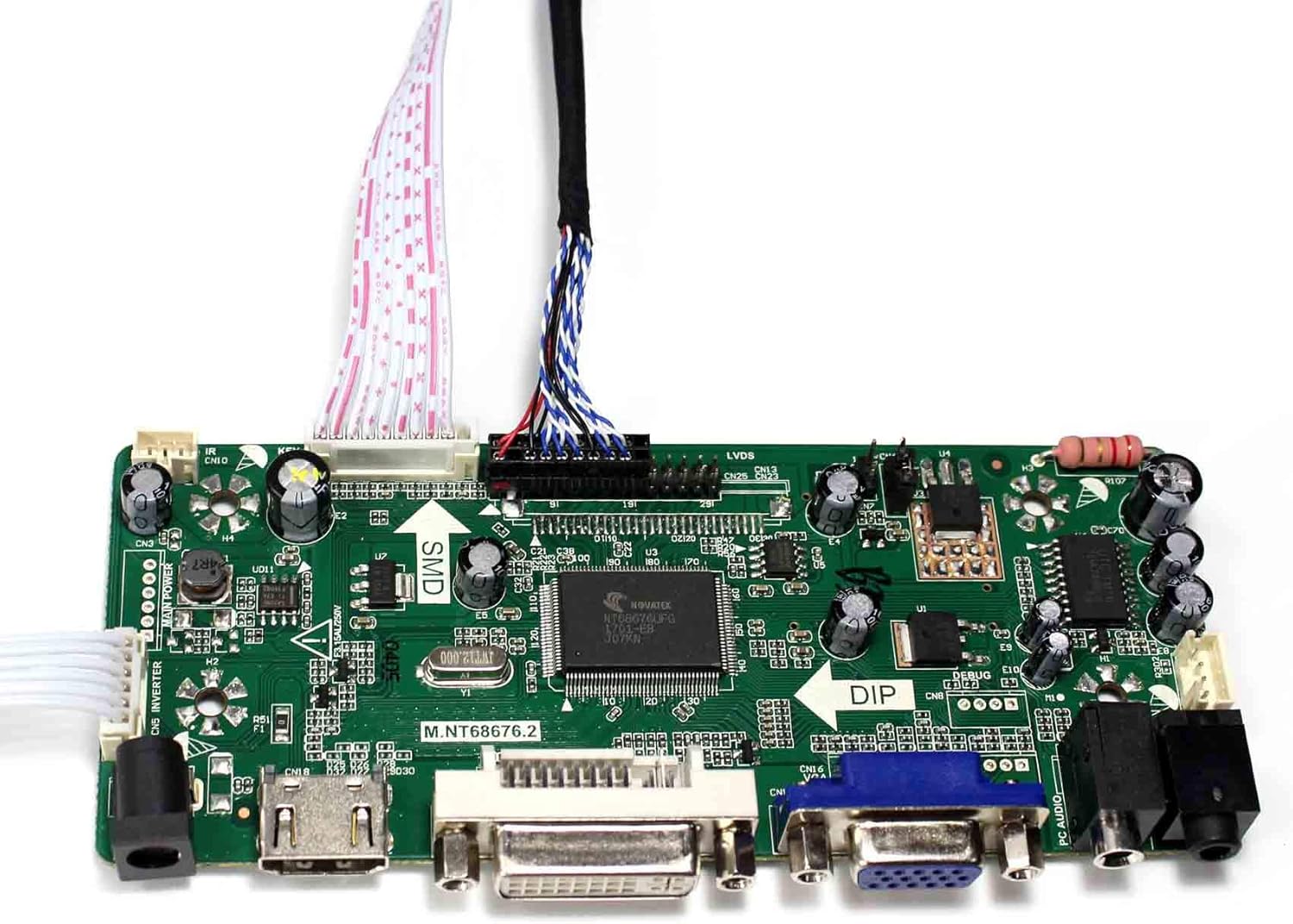

LCD Controller Board: DVI VGA AUDIO LCD Board Work for LVDS Interface LCD ScreenInput Power Adapter:12Vdc More than 2A.Come In Standby Model When Not Input SignalStandby Model <1WVideo Input: DVI VGAAudio Input: Audio Output: Speaker ConnectorOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size:125mm x 58mm x 17mm10.4" VS104T-001A 800X600 LCD Screen:Display Mode TN, Normally White, TransmissiveResolution 800RGB)×600Outline Size 236 × 174.3×4.9 (H×V×D)Display Area 211.2 × 158.4 (H×V) Brightness 500 cd/m² (Typ.)Contrast Ratio 500:1 (Typ.) (TM) Viewing Angle 80/80/60/80 (Typ.)(CR≥10) [Left / Right / Up / Down]Signal Interface LVDS (1 ch, 6-bit) , 20 pins , ConnectorBacklight WLEDInput Voltage 3.3V (Typ.)Packing list :1× VGA DVI LCD Controller Board 686761× 10.4inch VS104T-001A 800X600 LCD Screen1× Converter Board1× LVDS Cable1× Keyboard With Cable
| UPC | 601285644868 |
|---|---|
| Brand | VSDISPLAY |
| Color | White |
| Resolution | SVGA |
| Screen Size | 10.4 Inches |
| Display Type | LCD |
| Manufacturer | VSDISPLAY |
| Screen Finish | Glossy |
| Native Resolution | 800 x 600 |
| Display Technology | LCD |
| Hardware Connectivity | Unknown |
