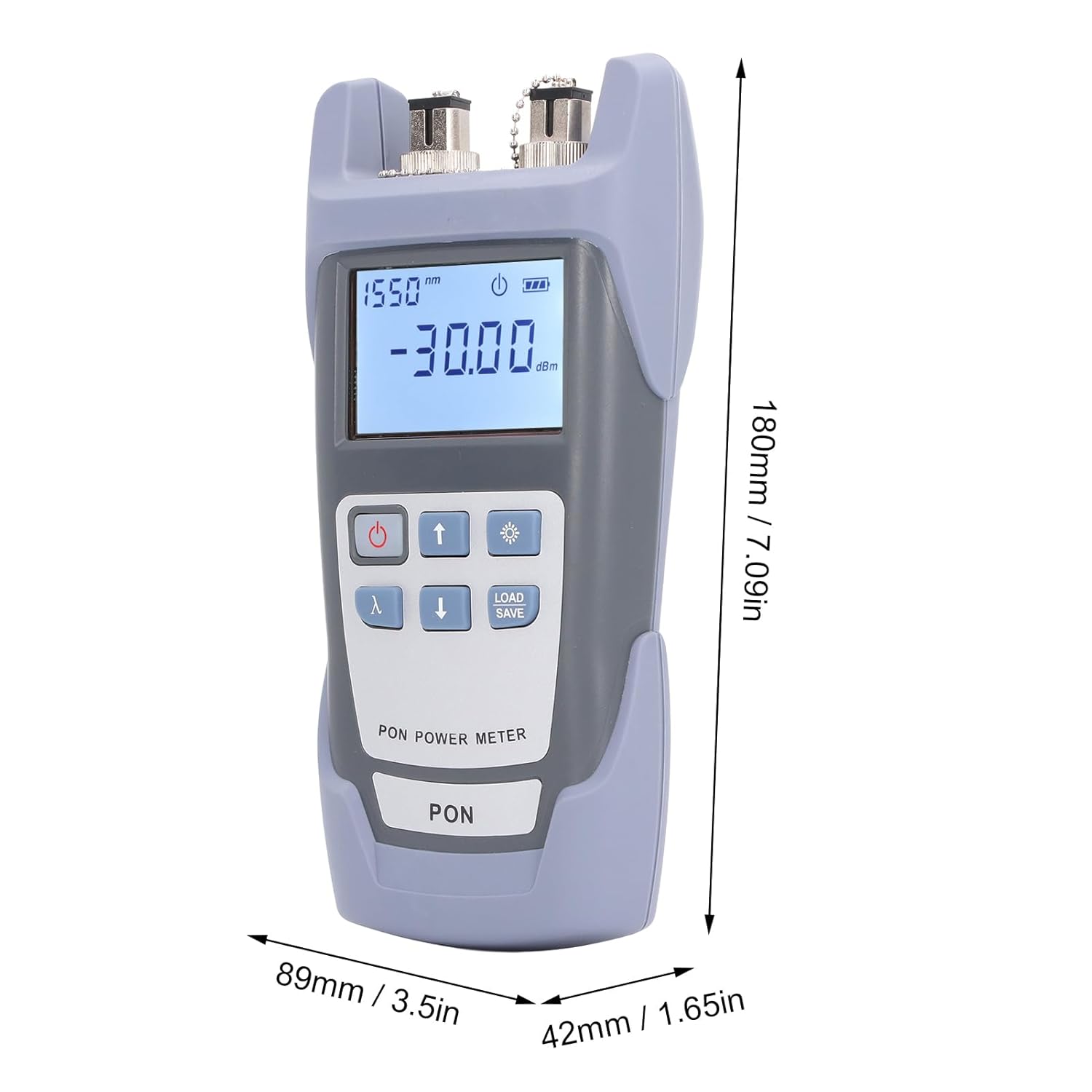

Handheld PON Power Meter Fiber Optic Cable Tester with LCD Display Supports , GPON, XGPON, XGSPON, 10GEPON

1. Smart Testing: The PON optical power meter is used to measure the optical power of up and downstream optical of ONU and OLT devices in PON networks. It can achieve online measurement through bidirectional ports and is compatible with network types such as , GPON, XGPON, XGSPON, 10GEPON.2. Simple Supports downstream mixed optical measurement and up burst emission measurement. When the current light power exceeds the preset threshold, the LED indicator light on the display screen will light up.3. Wide Test Range: Equipped with FC SC UPC interface adapter. Pon power meter testing wavelength of 1310nm, 1490nm, 1550nm, capable of testing three wavelengths simultaneously. Online testing ensures communication between OLT and ONT.4. Other Functions: Supports data storage, automatic shutdown, backlight selection, automatic calibration, user calibration, and threshold setting.5. Premium Design: High testing accuracy, fine workmanship, easy to carry, soft silicone protective cover, reducing damage caused by collisions and falls.Specification:Item Type: Optical Fiber Power MeterModel: SKL-300UMaterial: ABSDisplay: LCD ScreenDetector Type: InGaAsPower Supply: 2 x AA dry battery, shipped without battery. Testing Wavelength: Can simultaneously test three wavelengths of 1310nm, 1490nm, 1550nm. Optical Power Meter Interface: SC FC interface, providing SC UPC and FC UPC adapters. How to Use:Open the package and take out the product to use. Package List:1 x Optical Fiber Power Meter2 x Adapter
