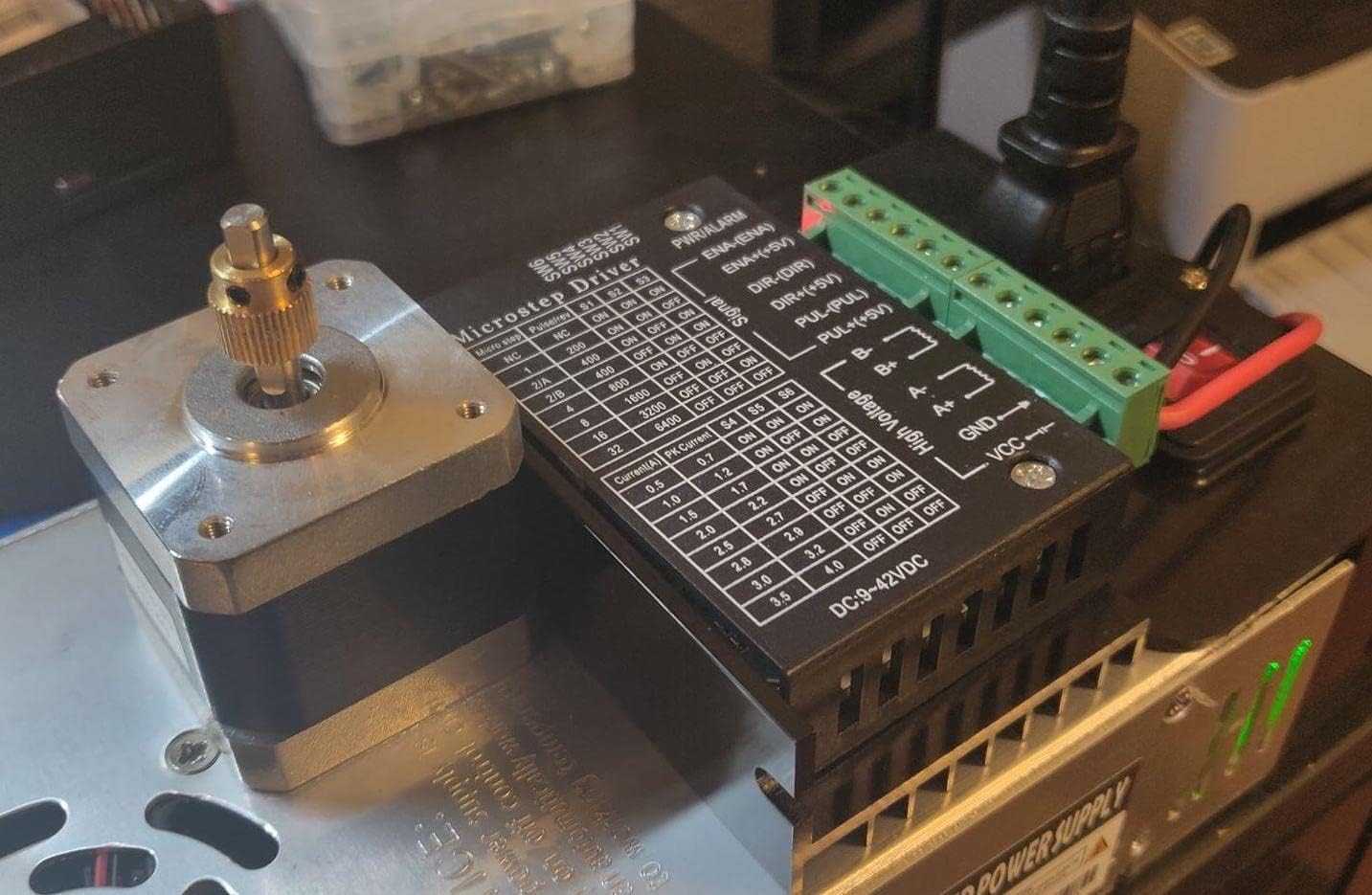

4 Pack TB6600 Stepper Motor Driver, Nema 17/23/34 Stepper Motor CNC Controller, 4A 9-42V Stepper Motor Controller for 42/57/86 Stepper Motor, Single Axes Two Phase Hybrid

FEATURES-9V-42V DC power supply, 12-30V power supply is the best;-H-bridge bipolar constant-phase current drive;-Eight output currents up to 4.0A are optional;-6 kinds of subdivision modes of big 32 subdivision are optional;-High-speed photoelectric isolation of input signals;-Standard common anode single pulse interface;-Offline hold function;-The semi-enclosed casing can adapt to more severe environments;-Provide energy-saving semi-automatic current locking function;-Built-in temperature protection and over current protection.PACKAGE- 4 x TB6600 Stepper Motor Driver

• TB6600 stepper motor driver suitable for 86/57/42 type two-phase hybrid stepping motor with phase current below 4.0A, Nema 17 23 34 Stepper Motor Driver (42x42mm to 60x60mm)
• Set 7 kinds of subdivisions (1/2A/2B/4/8/16/32) through 6-bit DIP switch
• 8 gear output current (0.5A/1.0A/1.5A/2.0A/2.5A/2.8A/3.0A/3.5A)
• Best application is to 57 stepper motors and 42 stepper motors with a torque of 1.8N.m and below
• Widely used in various small and medium-sized automation equipment and hardware, such as engraving machine, marking machine, cutting machine, laser phototypesetting, plotter, CNC machine tool, crystal grinding machine, automatic assembly equipment, etc
